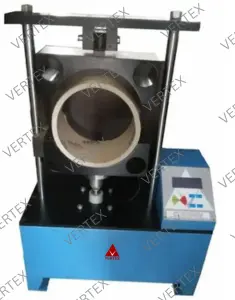

Core Compression Tester
Evaluate the structural load resistance and crushing strength of paper cores, tubes, and industrial pipes with our advanced Core Compression Tester. Designed to measure the maximum compressive force a specimen can endure before structural collapse, this equipment utilizes a precision electro-pneumatic piston system. Featuring an adjustable testing area to accommodate various tube dimensions and an intuitive digital display with peak hold recording, it provides reliable quality metrics for paper mill and winding applications.
Product Overview
Our Core Compression Tester is an indispensable testing instrument engineered to determine the crushing strength of industrial core pipes under continuous vertical loads. By applying controlled pneumatic pressure, the machine accurately records the exact collapsing force at the moment of specimen failure. Built with a flexible testing zone and automated controls, it serves as a critical benchmark for manufacturers to ensure their paper cores withstand rigorous handling, stacking, and high-speed winding stresses.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 1000 Kgf at 6 Kg/cm2 |
| Least Count / Resolution | 1 Kgf |
| Accuracy | 0.2% of Full Scale |
| Power Supply | 110 / 220V, 50/60 Hz, 5 Amp |
| Compressed Air | 6 kg/cm2 |
| Weight | 100 Kg Cast Iron weights (For calibration) |
Advanced Features
Electro-Pneumatic Operation
Powered by a robust, maintenance-free electro-pneumatic piston mechanism that applies smooth, consistent pressure to crush test samples accurately.
Digital LCD Display & Direct Readout
Equipped with a backlit digital LCD screen that provides direct readouts of the load and collapsing force, eliminating the need for manual calculations.
Auto-Stop & Auto-Return Function
Features intelligent automation that automatically stops testing and returns the piston to its home position upon test completion, ensuring high operational efficiency.
